ZUIDASDOK, AMSTERDAM

The Zuidasdok project embraces the broadening and in part placing underground of the motorway A10, the extension and renewal of the railway station Amsterdam Zuid, and the rearrangement of the Amstel and De Nieuwe Meer motorway interchanges.

By placing the A10 partly underground, transverse roads (such as the Parnassusweg, Brittenpassage, Minervapassage and Beethovenstraat) can be laid on top of the A10. Over these transverse roads is the station Amsterdam Zuid for train and metro.

To relocate the Brittenpassage, new earthworks and covered railway tracks / slabs will be constructed during the suspension of normal services. After the placement of the new covered railway tracks, excavation under them will allow creation of the passage, including the supporting pillars.

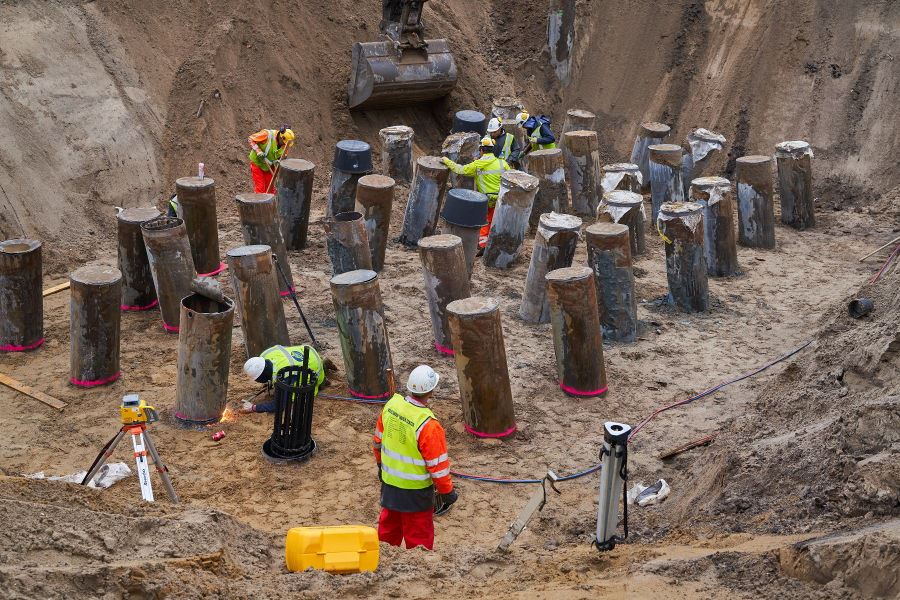

For this project GEO2 Engineering B.V. has taken care of the design of the foundations. Using an analysis in Plaxis 2D, the influence of the excavation of the Brittenpassage on the earthworks of the viaduct carrying the railway has been investigated. Because of the limited space available, the design provides for the nailing of the ground between the pillars of the earthworks.
